Ni Series

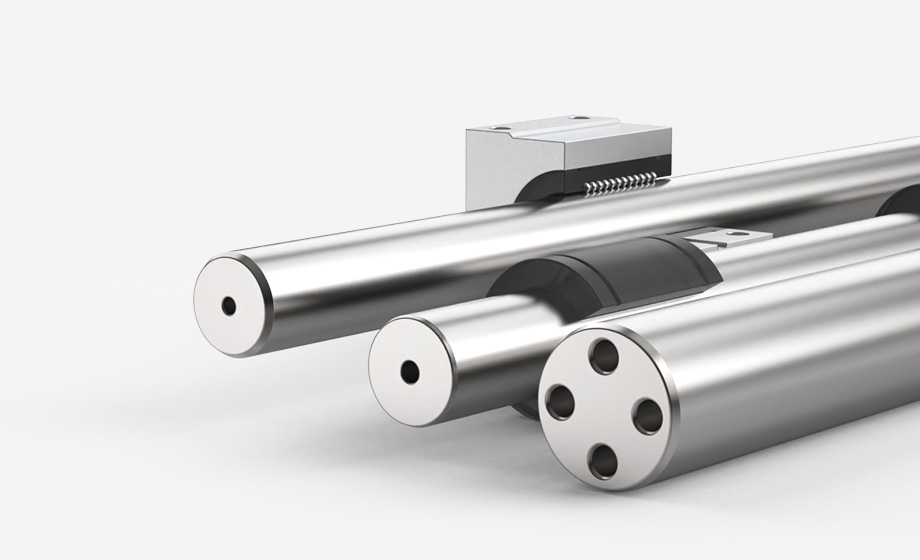

Linear Shafts
NIMET produces hardened, hardened chrome-plated CF53, C55E and C45E shafts and the entire X46CR13 and X90CRMOV18 hardened stainless steel range for linear motion systems.
Thanks to a wide range of CNC machines and machining centers, it is possible to produce completely finished shafts according to drawing.
Ni
Linear Shafts
W
Induction hardened and ground linear shafts
- steel grade: Cf53, C55E, C45E
- Ø4 - 100 mm / Ø1/4" - 4"
WV
Induction hardened and hard chrome plated linear shafts
- steel grade: Cf53, C55E, C45E
- Ø4 - 100 mm / Ø1/4" - 4"
WRB
Induction hardened and ground stainless steel linear shafts
- steel grade: X46Cr13 (W1.4034)
- Ø4 - 50 mm / Ø1/4" - 2"
WRA
Induction hardened and ground stainless steel linear shafts
- steel grade: X90CrMoV18 (W1.4112)
- Ø4 - 50 mm / Ø1/4" - 2"
WP
Deep case hardened and ground shafts for ball screws
- steel grade: Cf53, C55E, 42CrMo4, 50CrMo4
- Ø20 - 100 mm / Ø3/4" - 4"
Ni Hollow
Linear Shafts
WH
Induction hardened and ground hollow linear shafts
- steel grade: C60E
- OD: Ø12 - 50 mm / Ø5/8" - 2"
WHV
Induction hardened and hard chrome plated hollow linear shafts
- steel grade: C60E
- OD: Ø12 - 50 mm / Ø5/8" - 2"
